Shenzhen Xuwei Electronic Co., Ltd.
China Manufacturer with main products: All Kinds of Components, High Power Resistor, Fusing Resistor, Chip Resistor, All Kinds of Resistor, Resistor Machinery, Resistor Accessories... |
11th

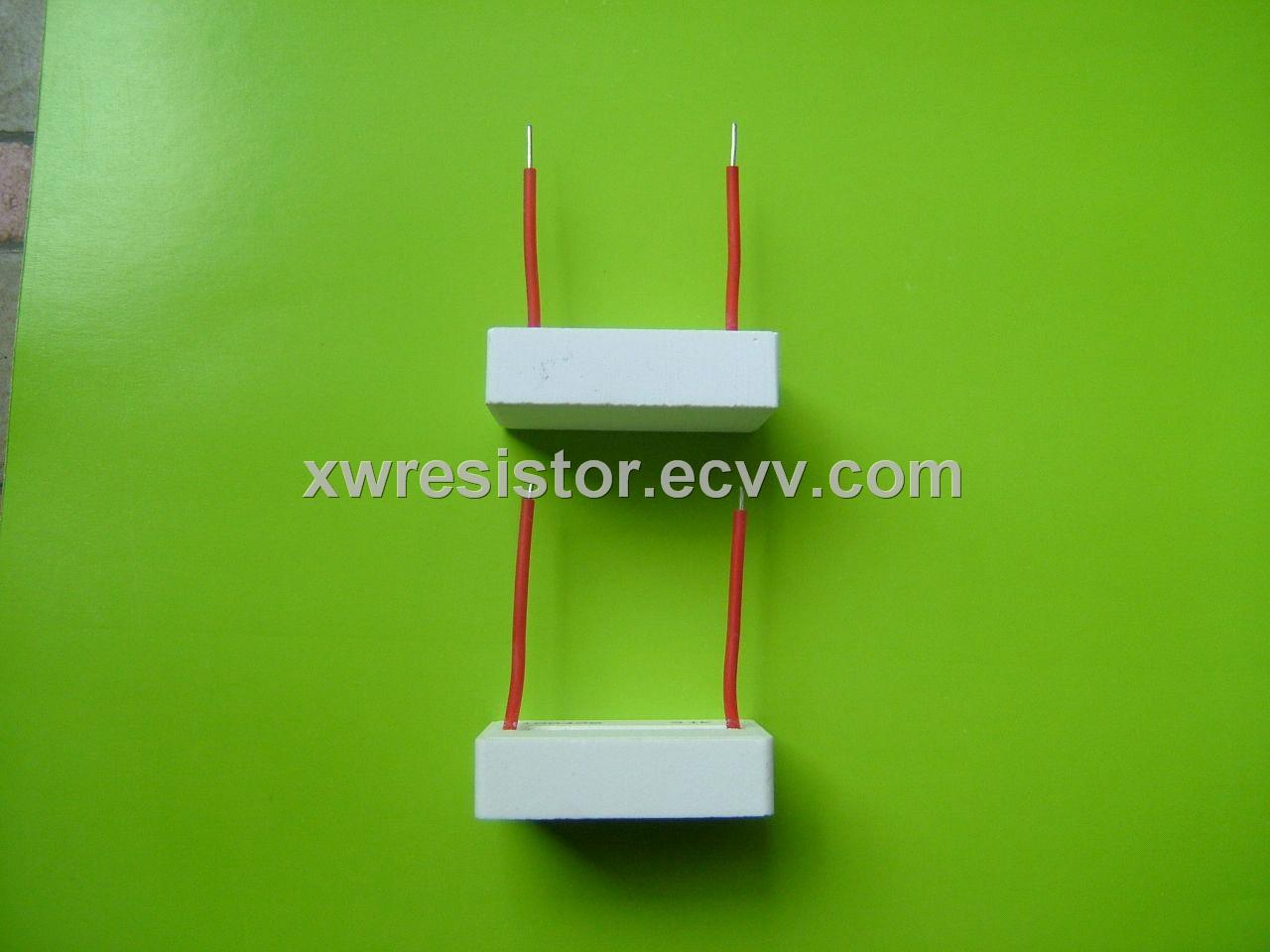

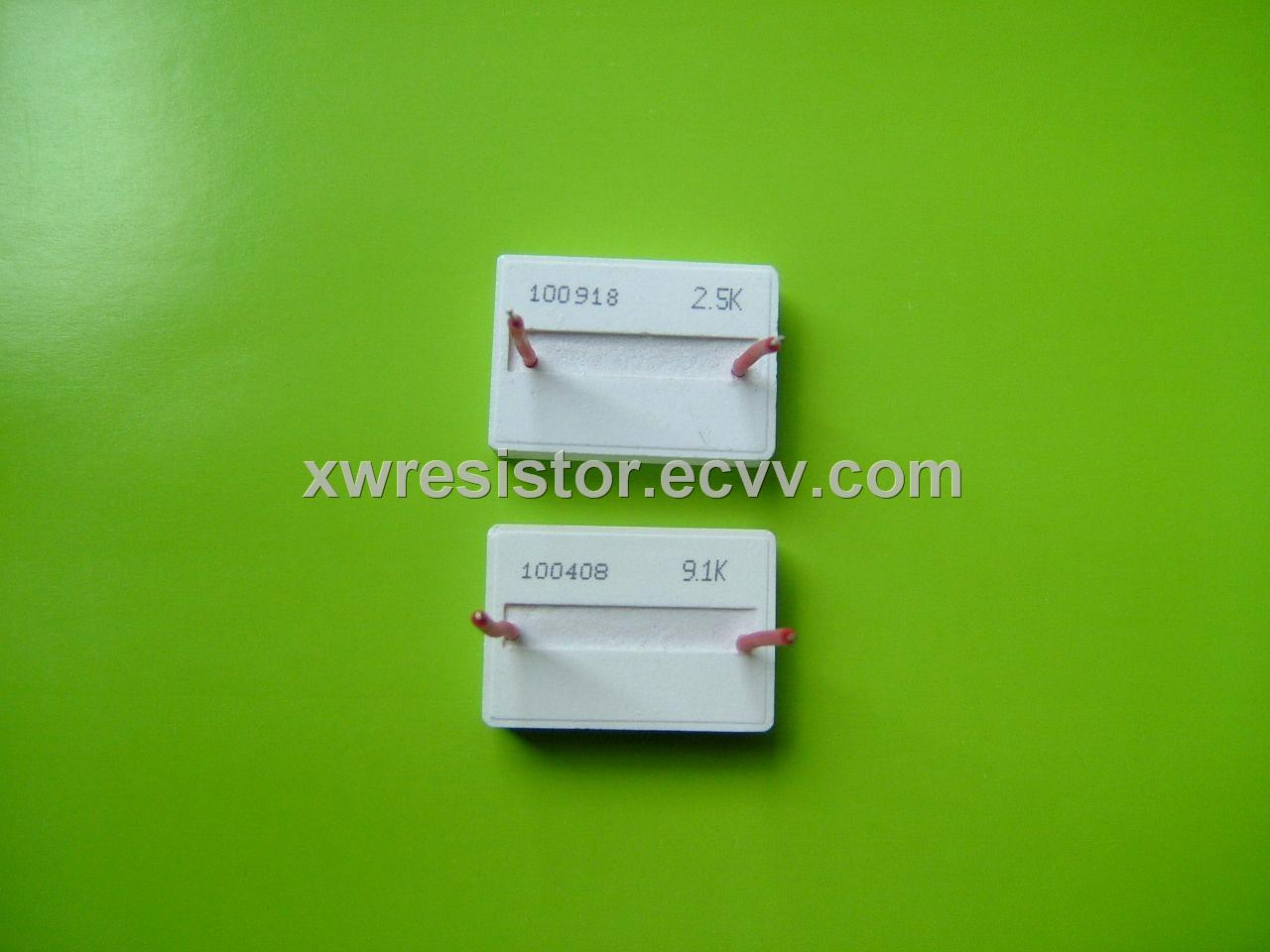

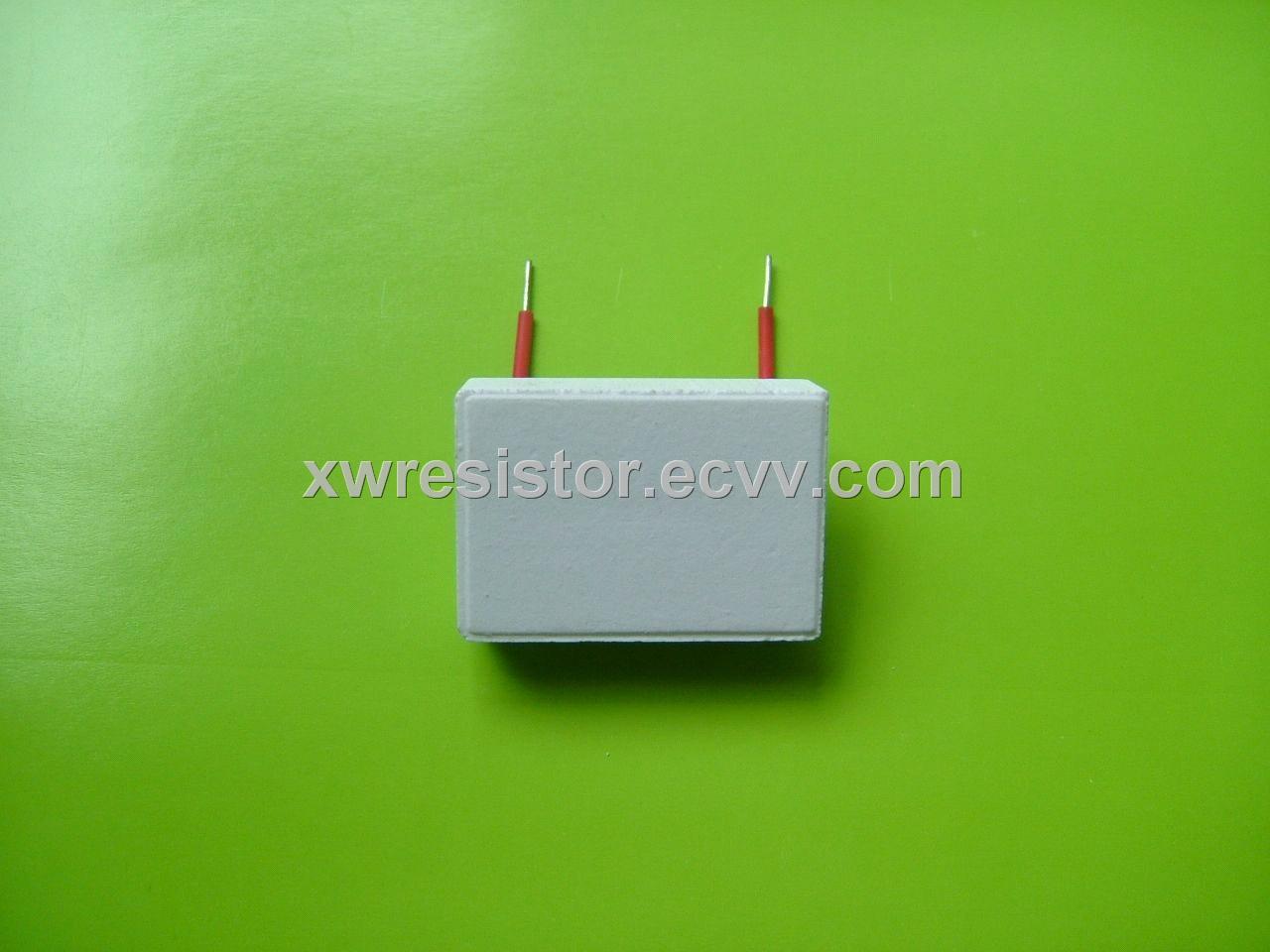

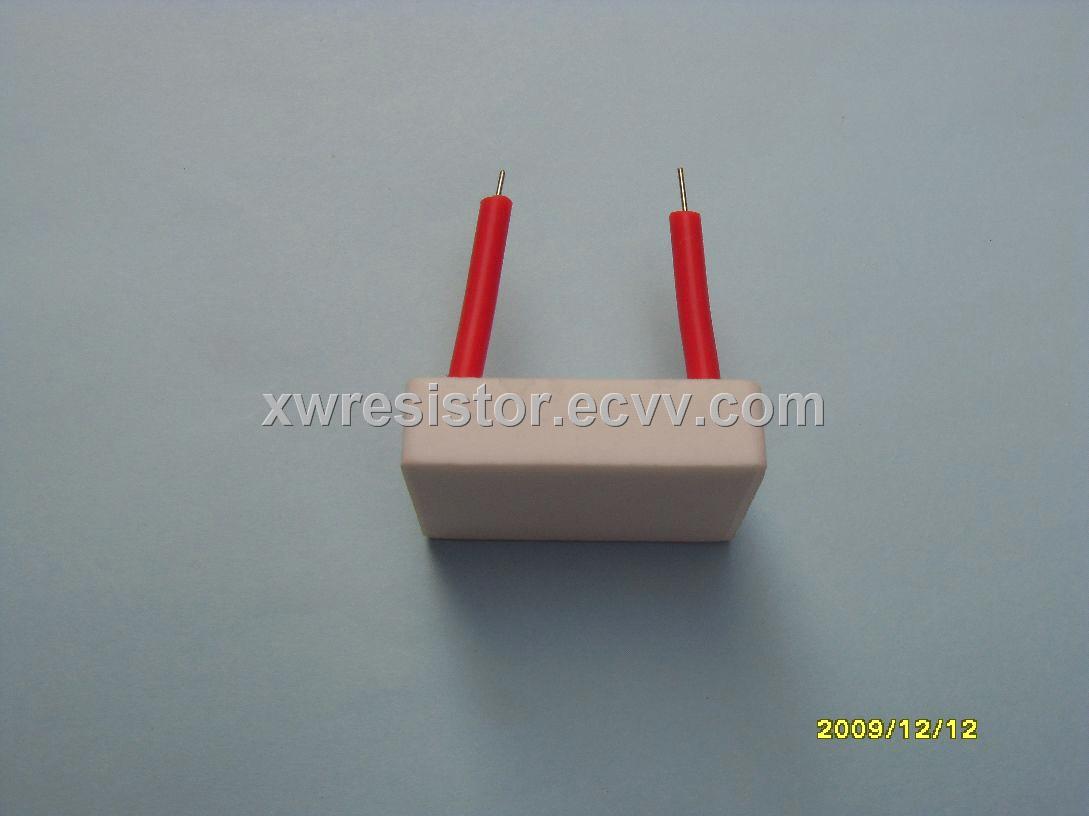

With Tubings Cement Resistors
| FOB Price: | 0.23 - 0.58 USD/Piece |
|---|---|
| Supply Ability: | 50,000,000 Piece/Pieces per Day |
| Shipping: | via International Express way as customer needed. |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | neutral or printing packing way as customer needed to packing |
Quick Details
- Operating Temperature: -55---+255
- Temperature Coefficient: 350--500PPM
- Rated Power: 1/4W---10W.1/2WS-10W
- Resistance Tolerance: 5%
- Resistance: 0.1R-250R and above or below
- Package Type: P
- Technology: cement resistors
- Type: Fixed Resistor
- Model Number: XWP-288
- Brand Name: OEM
Specifications
With Tubings Cement Resistors
High Quality 1W-10W Cement Resistors
Compare Price Power Ceramic Encased Wirewound Resistors
High Quality Ceramic Encased Wire-wound Resistors
Inductive & Non-Inductive Wirewound Resistor
cement type resistor specifications
1,Style is your market
Used for power industry to protective circuit.
2,Selling point
1)Prompt delivery;
2)Rohs compliant & ISO9001(2008);
4)Factory direct price;
5)None forbidden.
3,Description
1)Meet performance requirement of CNS 2320, JIS 6402;
2)OEM.
4,Function
To protective circuit.
|
TYPE |
DIMENSIONS |
||||||
|
W±1.0 |
D±1.0 |
H±2.0 |
d±0.05 |
P±1 |
L±1 |
L(P4) |
|
|
2W |
11 |
7 |
20 |
0.8 |
5 |
4 |
10min |
|
3W |
12 |
8 |
25 |
0.8 |
5 |
4 |
10min |
|
5W |
13 |
10 |
25 |
0.8 |
5 |
4 |
10min |
|
7W |
13 |
10 |
39 |
0.8 |
5 |
4 |
10min |
|
10W |
13 |
10 |
51 |
0.8 |
5 |
4 |
10min |
|
10WS |
16 |
12 |
36 |
0.8 |
5 |
4 |
10min |
|
TYPE |
MAX.WORKING VOLTAGE(V) |
MAX.OVERLOAD VOLTAGE(V) |
INSULATION RESISTANCE TO VOLTAGE(V) |
RESISTANCE TOLERANCE |
RESISTANCE RANGE(OHM) |
|||
|
MIN. |
MAX. |
MIN. |
MAX. |
|||||
|
2W |
300 |
600 |
1000 |
J(±5%) |
0.1Ω |
100Ω |
100Ω |
1MΩ |
|
3W |
300 |
600 |
1000 |
J(±5%) |
0.1Ω |
100Ω |
100Ω |
1MΩ |
|
5W |
350 |
700 |
1000 |
J(±5%) |
0.1Ω |
100Ω |
100Ω |
1MΩ |
|
7W |
500 |
1000 |
1000 |
J(±5%) |
0.1Ω |
100Ω |
100Ω |
500KΩ |
|
10W |
700 |
1400 |
1000 |
J(±5%) |
0.1Ω |
500Ω |
500Ω |
500KΩ |
|
15W |
700 |
1400 |
1000 |
J(±5%) |
0.1Ω |
800Ω |
800Ω |
500KΩ |
|
20W |
750 |
1500 |
1000 |
J(±5%) |
0.1Ω |
800Ω |
800Ω |
500KΩ |
|
25W |
750 |
1500 |
1000 |
J(±5%) |
0.1Ω |
800Ω |
800Ω |
500KΩ |
|
30W |
750 |
1500 |
1000 |
J(±5%) |
0.1Ω |
800Ω |
800Ω |
500KΩ |
|
40W |
750 |
1500 |
1000 |
J(±5%) |
0.1Ω |
800Ω |
800Ω |
500KΩ |
