Sfr-Apf Harmonic Suppression Automatic Compensation Active Harmonic Filter
| FOB Price: | 30.00 - 50.00 USD/Ampere |
|---|
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Elecnova
- Rated Voltage: AC380V
- application: Harmonic Management
- Material: Steel
- name: SFR-APF Active Harmonic Filter
- Model Number: SFR-APF
Specifications
Basic Info.
Model NO.
SFR-APF
Standard
GB/T15575-2008
Transport Package
50*60cm
Trademark
ELECNOVA
Origin
China
HS Code
9030809090
Production Capacity
20000PCS/Per Month
Product Description

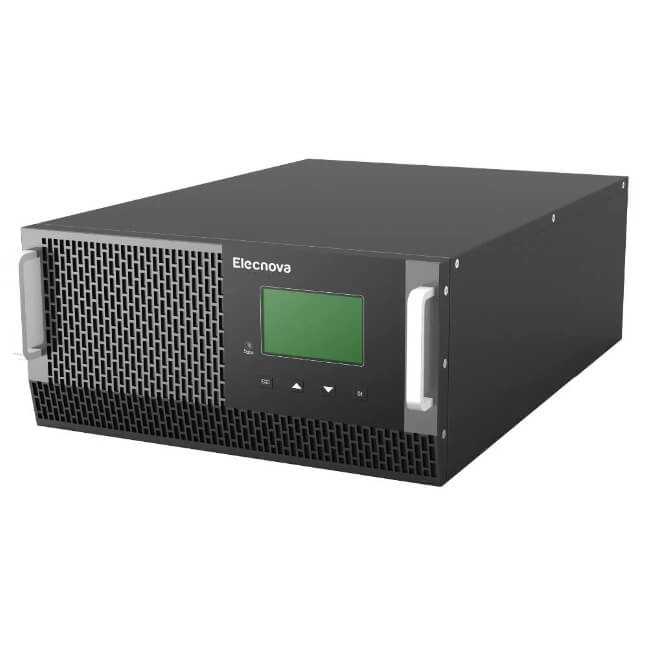

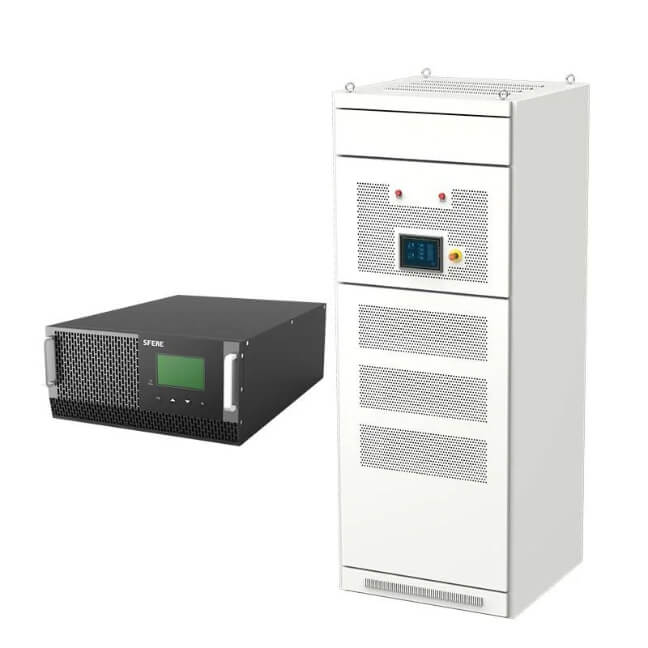

Product Name: SFR-APF harmonic suppression automatic compensation Active Harmonic Filter

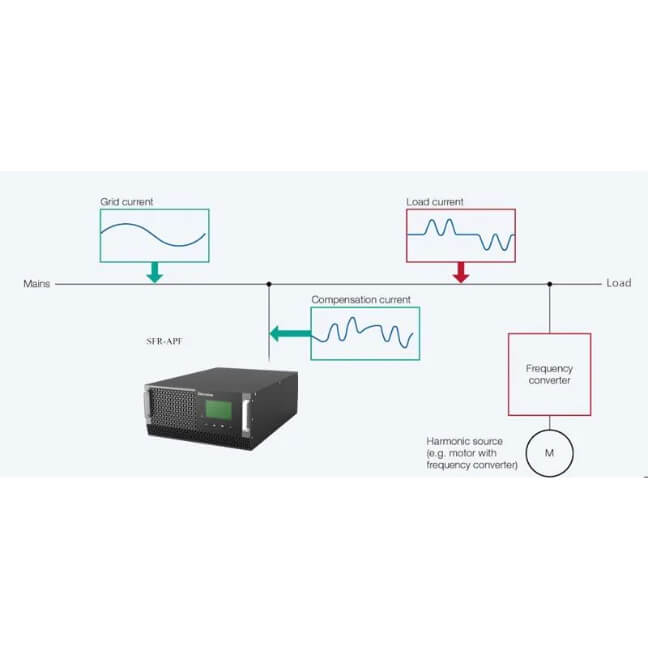

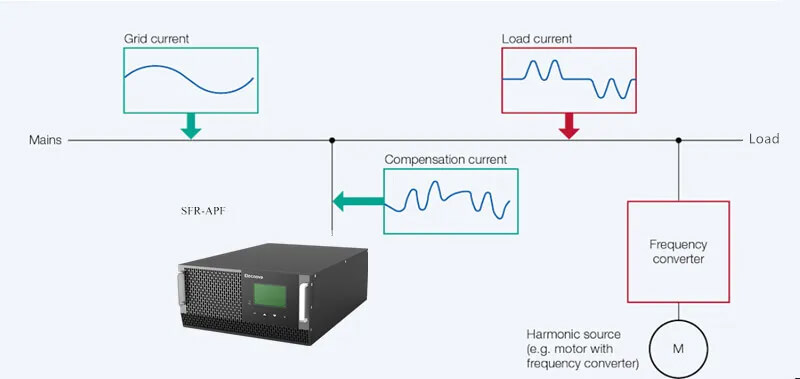

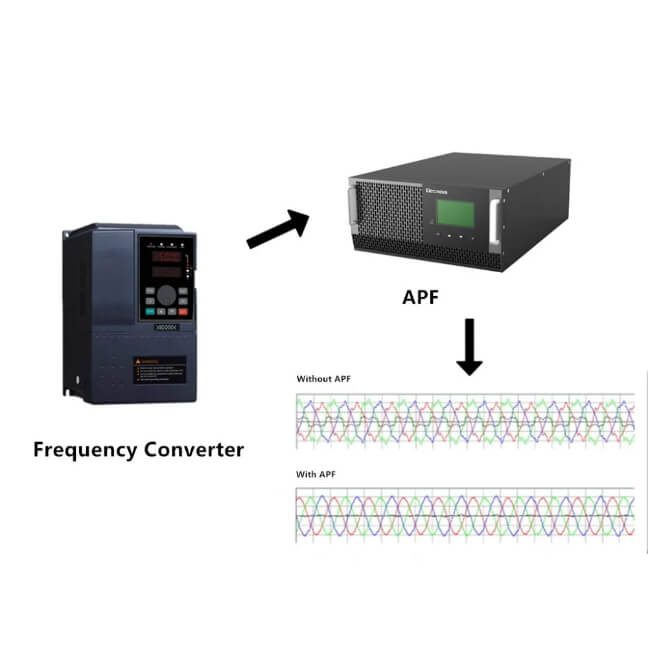

Active power filter is a new type of electronic device for dynamic filtering of harmonic wave and reactive power compensation. It can conduct real-time filtering and compensation to harmonic wave (both size and frequency are changed) and dynamic reactive power, and is used to overcome disadvantages of traditional harmonic suppression and reactive compensation methods of traditional filters,thus realizing systematic harmonic filtering function and reactive power compensation function. In addition, it is widely applied into power,metallurgy. Petroleum, port, chemical and industrial and mining enterprises.
Technical Specifications
Function |
Specification | |
Measurement accuracy |
Current |
≤1.0%(5%~120%in) |
Voltage |
≤0.5%(80%~120%Un) | |
Power |
≤2% | |
Power factor |
≤0.01 | |
Switching mode |
Zero cross switching | |
Compensation operation |
Working voltage |
AC380V±20%, distortion rate ≤5% |
Comsumption |
≤5VA | |
Max working current |
1.35 X in | |
Switching inrush current |
≤3 X in | |
Host protection |
over voltage |
430V(can be set) |
under voltage |
300V(can be set) | |
Harmonic exceeding |
0%~100% | |
Local protection |
over current |
0A~100A |
over temperature |
55 C | |
Unbalance |
50% | |
Control setting |
Control parameter |
Target power factor, switching threshold, delay time etc. |
Peripheral unit parameters |
Current transformer ratio | |
Network interface |
Pluggable data line, internal network protocol | |
Mechanical installation |
Outline dimension |
W-71.5mm L-370mm, height is a according to different capacity |
Installation dimension |
Distance of installation fixing holes:W-85mm*L-315MM | |
Weight |
≤6.5kg | |
Environment temperature |
Working temperature |
-15C~45C |
Storage temperature |
-25C~55C | |
Altitude |
≤2000m | |
Standard |
GB/T15575-2008 | |
Transformer Capacity(kVA) |
Capacity and Quantity of Active Power Filter(Three-phase Four-wire) |
Capacity and Quantity of Active Power Filter(Three-phase Three-wire) |
200 |
SFR-APF4-50/0.4 |
SFR-APF3-50/0.4 |
250/315 |
SFR-APF4-50/0.4 |
SFR-APF3-75/0.4 |
400 |
SFR-APF4-75/0.4 |
SFR-APF3-75/0.4 |
500/630 |
SFR-APF4-75/0.4 |
SFR-APF3-100/0.4 |
800 |
SFR-APF4-100/0.4 |
SFR-APF3-150/0.4 |
1000 |
SFR-APF4-100/0.4 |
SFR-APF3-200/0.4 |
1250 |
SFR-APF4-150/0.4 |
SFR-APF3-250/0.4 |
1600 |
SFR-APF4-200/0.4 |
SFR-APF3-300/0.4 |
2000 |
SFR-APF4-200/0.4 |
SFR-APF3-400/0.4 |
2500 |
SFR-APF4-300/0.4 |
SFR-APF3-250/0.4 x 2 |

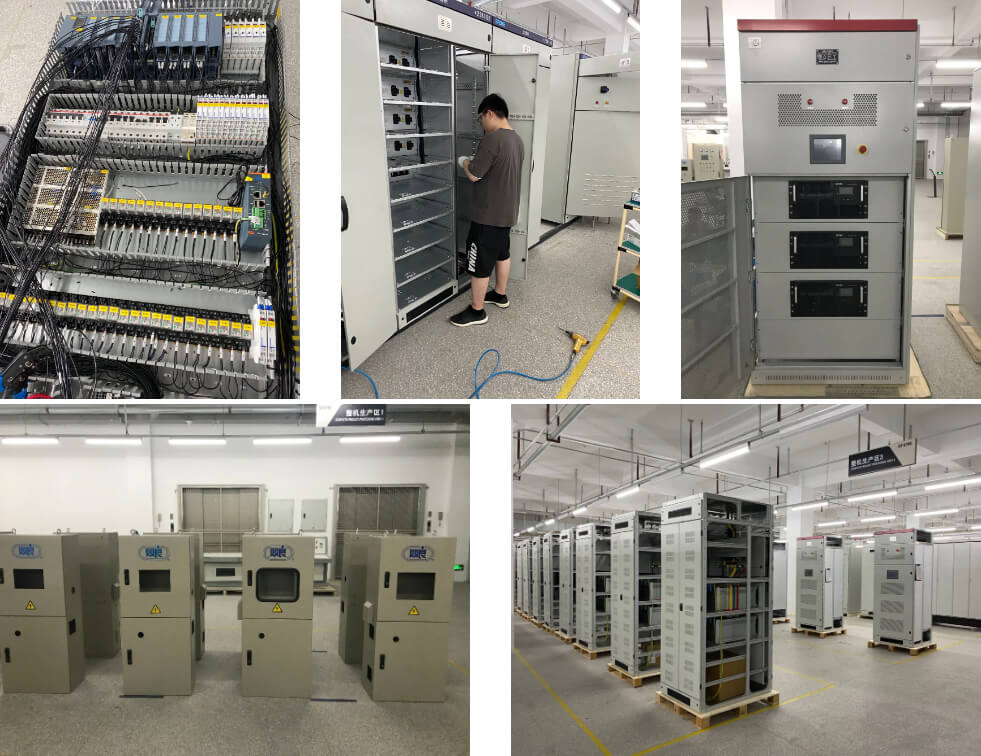

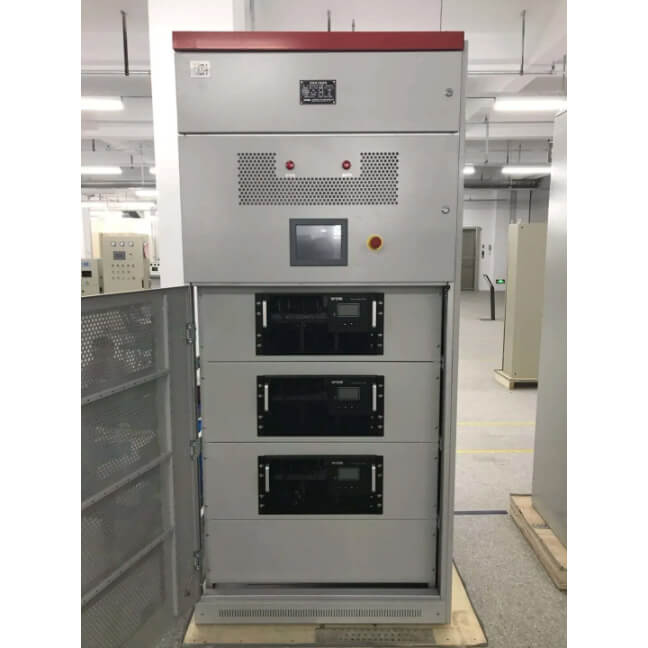

Panel Assembly
Q: Are you trading company or manufacturer?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: how long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
