30A Wall Mounted Smart HMI Control Active Harmonic Filter Ahf 3p4w

FOB Price:	30.00 - 50.00 USD/Ampere

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Elecnova
Rated Voltage: 400V
application: Harmonic Management
Material: Steel
name: Active Harmonic Filter Ahf 3p4w
Model Number: SFR-APF

Specifications

Basic Info.

Model NO.

SFR-APF

Usage

Distribution Equipment

Standard

IEEE519

Transport Package

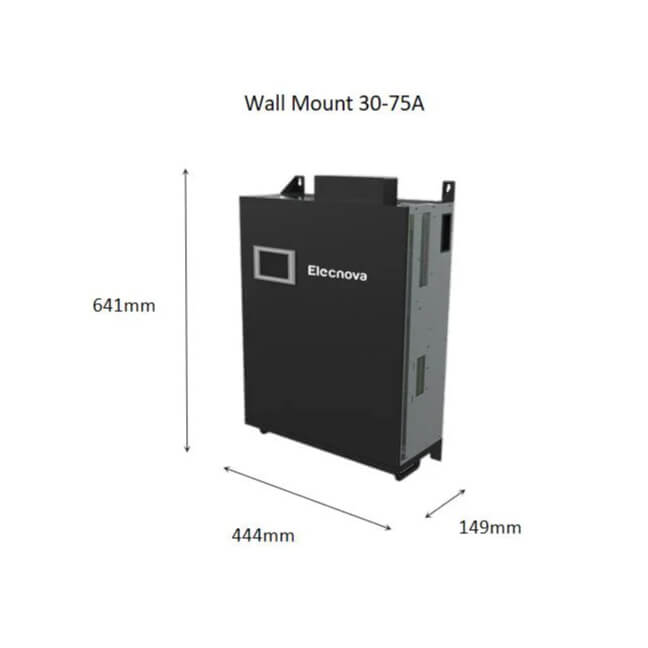

444*149*641mm

Trademark

ELECNOVA

Origin

China

HS Code

9030899090

Production Capacity

20000PCS/Per Month

Product Description

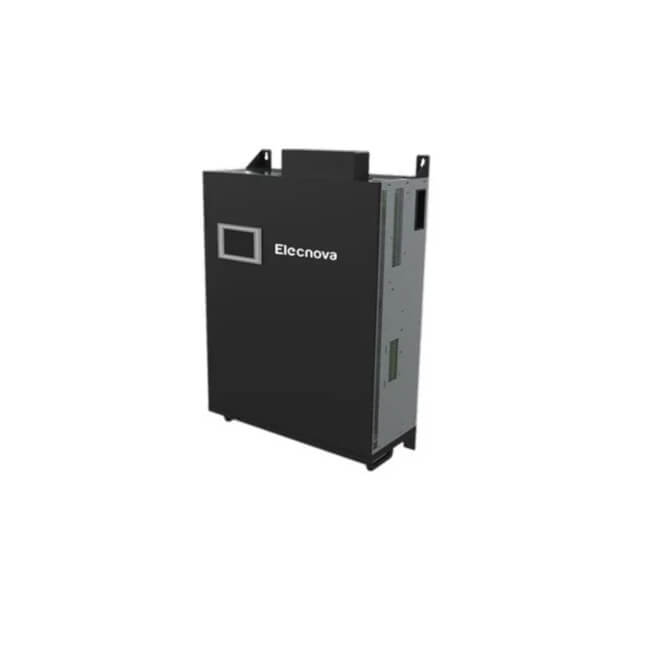

Product Name: 30A wall mounted smart HMI control Active Harmonic Filter AHF 3P4W

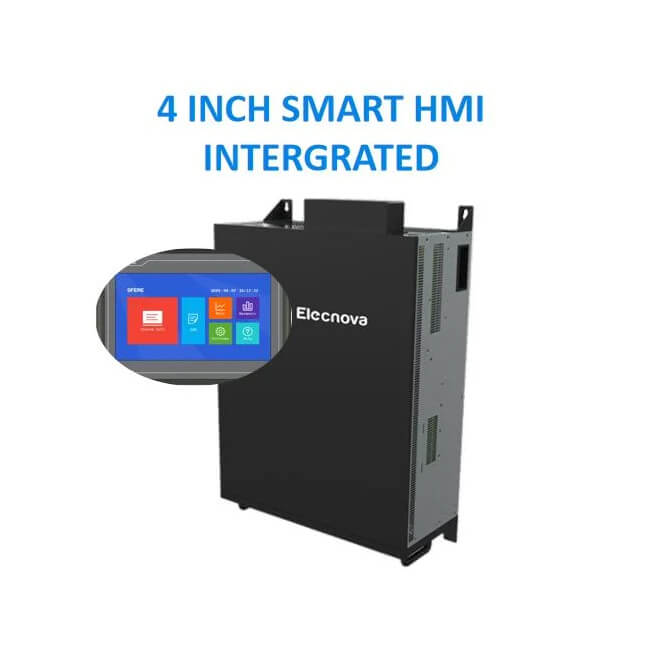

Wall mounted SFR-AHF which intergrated with 4" HMI control system uses an efficient power electronics topology and advanced all-digital control technology to dynamically eliminate harmonic currents.
30A Wall Mounted Smart HMI Control Active Harmonic Filter Ahf 3p4w

Technical Specifications

Input
System voltage	Line voltage 400V
System voltage range	±15%
Frequency	50Hz ±5%
Output and installation
Capacity specification	30A
Module type	Rack Mounted
Incoming way	Upper incoming/Back incoming
Performance

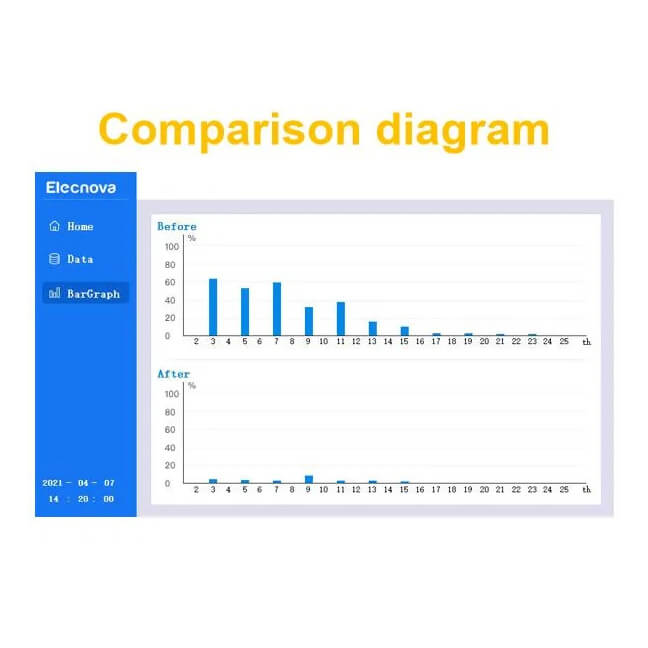

Harmonics filtering rate	≥90% (Within the range of the ordered capacity, and the load harmonic content is higher than 30% of the ordered capacity)
Harmonics filtering range	2nd ~51st harmonics(If you need to control the harmonic order of more than 25 times, you should write in the contract)
Full response time	≤5ms
Instantaneous response time	≤100us
Dynamic current	1.2 times the filter rated capacity output,1min
Protection
Overload protection	Automatic current limit at 100% rated output
Other protection	over-voltage protection, under-voltage protection, over-temperature protection, over-current protection
Operation mode
Stand-alone operation	Support
Parallel operation	Conventionally support 8 sets, special requirements can be customized
Display and operation
Status display	Power / Operation / Fault LED indication
Module operation	Start/Stop/Restart
HMI (Optional)	Optional 7" (Hole size 215152mm) 10" (Hole size 261180mm)
Communication (RS485 interface)	1 loop Modbus-RTU protocol external communication interface, Users can have access to the background system through this interface or HMI port
Environment condition
IP level	IP20(customized)
Operating environment temperature	-25C~40C
Storage/ transport temperature	-25C~55C
Work humidity	Relative humidity 5~95%,no condensation
Altitude	1000m and below(above 1000m, Every additional 100m / 1% derating)
Standard	IEEE519

Application

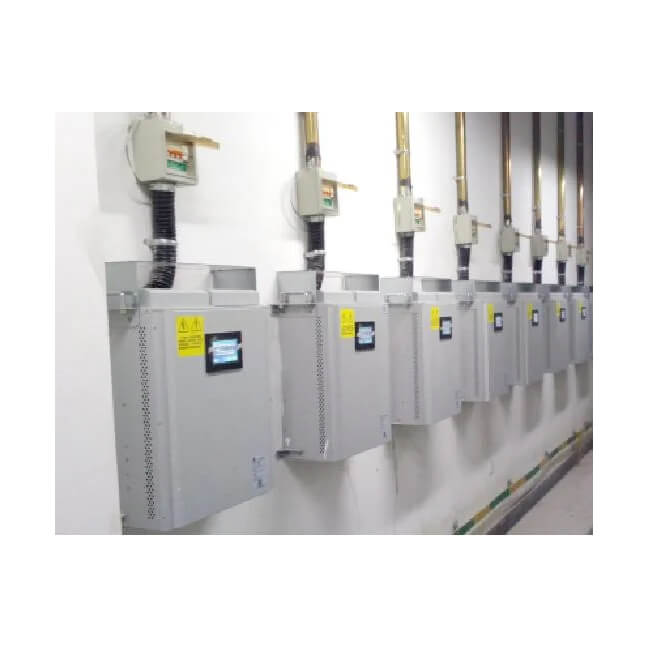

SFR-AHF can be widely used in the following industrial fields (steel industry, metallurgy industry, mining industry, new energy industry, automotive industry), municipal field (water treatment industry, telecommunications industry, research institutes), commercial field (hospital, bank, shopping mall, schools, computer rooms, computer centers), rail transportation (electrified railways, subways).
30A Wall Mounted Smart HMI Control Active Harmonic Filter Ahf 3p4w

FAQ

Q: Are you trading company or manufacturer?

A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: how long is your delivery time?

A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples? Is it free or extra?

A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment?

A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
