Sfr-Svg Kvar Wall Mounted Static Var Generator Power Factor Correction Equipment

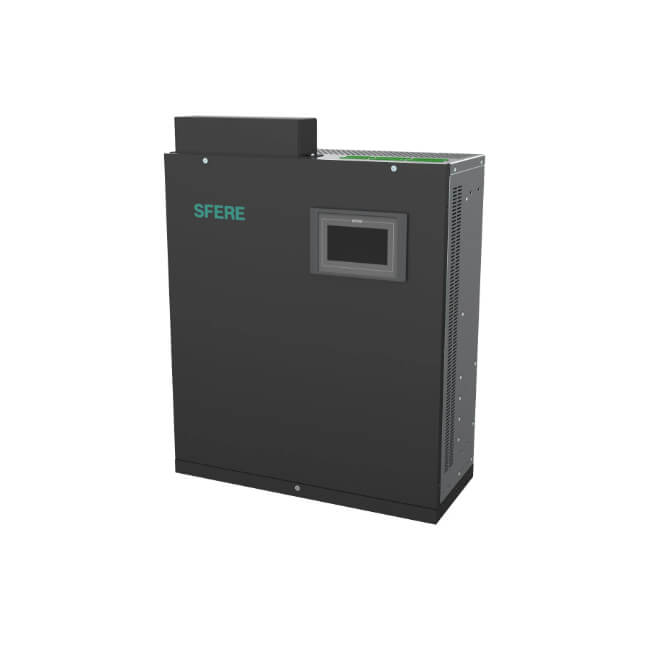

Product Name: SFR-SVG kvar wall mounted static var generator power factor correction equipment

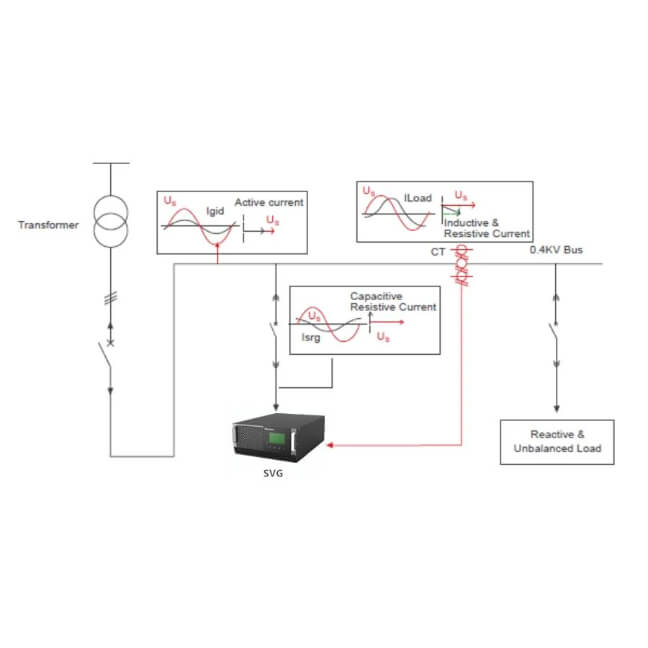

the principle of the SVG is very similar to that of Active Power Filter, as demonstrated in the picture below. When the load is generating inductive or capacitive current, it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates leading or lagging current into the grid, making the phase angle of current almost the same as that of voltage on the transformer side, which means fundamental power factor is unit. SFR-SVG is also capable of correcting load imbalance.


Technical Specifications

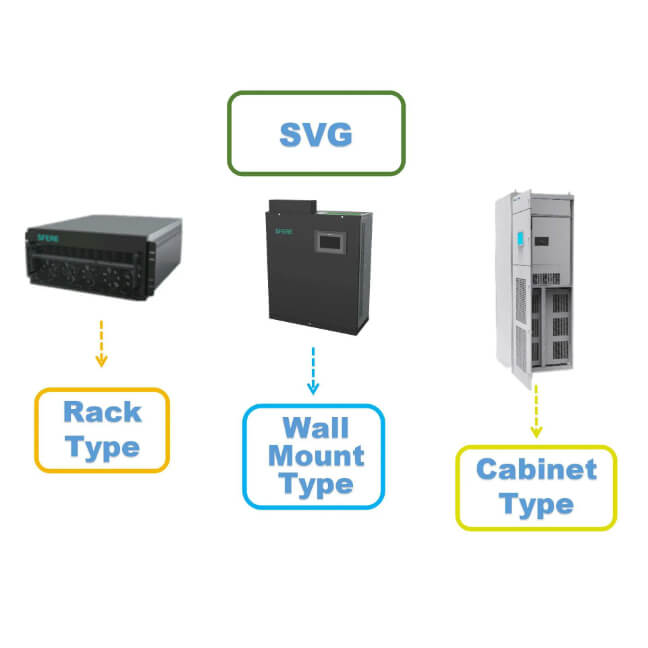

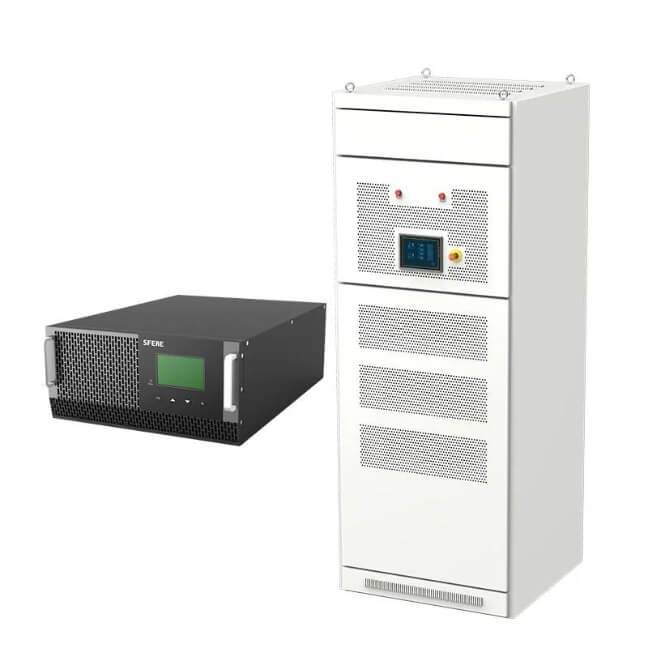

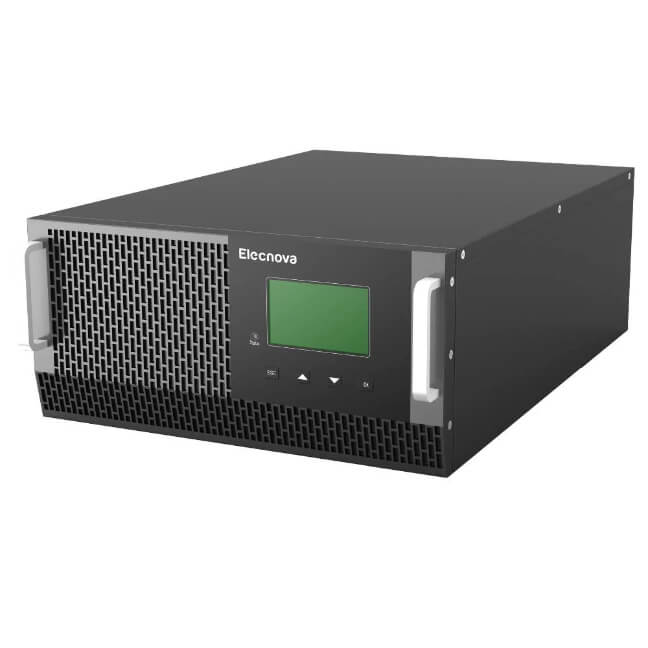

Function	Technical parameters	Wall mounted SFR-SVG-(30~50)/B	Rack mounted SFR-SVG-(30~200)/M	Cabinet type SFR-SVG-(100~500)/G
Electrical Characteristics	Rated voltage(V)	AC380V±15%, AC690V±15%
	Working frequency(Hz)	50Hz±5%
	Rated compensation capacity(KVA)	30 50	30       50 75       100 150     200	100~500
	Scope of reactive adjustment	Continuously adjustable from rated induced to rated capacitive
	Response time	5ms
	Loss of active power	<3% rated module power
	over-load capability	120%
	Multi-set running mode	Parallel running
	Mean time between failures	≥100,000hours
Local protection	Switching frequency	Average 10kHz
	Control algorithm	Compensation algorithm of screening vector of frequency domain possessing self-adaptation capability
	Controller	Digital signal processor(DSP)
	Communicationcapability	Adopting Modbus remote communication protocol,communication interface RS485/232 and CAN bus
	Control connection	Optical fiber or electrical connection
Structural characteristics	W x H x D(mm)	510 x 218 x 694	340 x 629 x 709	Refer to capacity of cabinet
	Protection grade	IP21 orcustomized according to the user' s demand
	Color	RAL7035(light gray),
	Cooling mode	Forced air cooling
	Overall structure	Floor type
	Installation mode	Indoor installation; optional fixing modes and optional cable incoming modes
Environmental conditions	Environmental temperature	-10~40C
	Storage temperature	-40~65C
	Relative humidity	5%-95%, no condensation
	Altitude	≤1000m,1000-4000;according to national standard GB/T3859.2, for every increased 100m, the power is reduced by 1%
Electromagnetic Compatibility	Conforming to GB/T7250-2005

Working Principle

Panel Assembly
