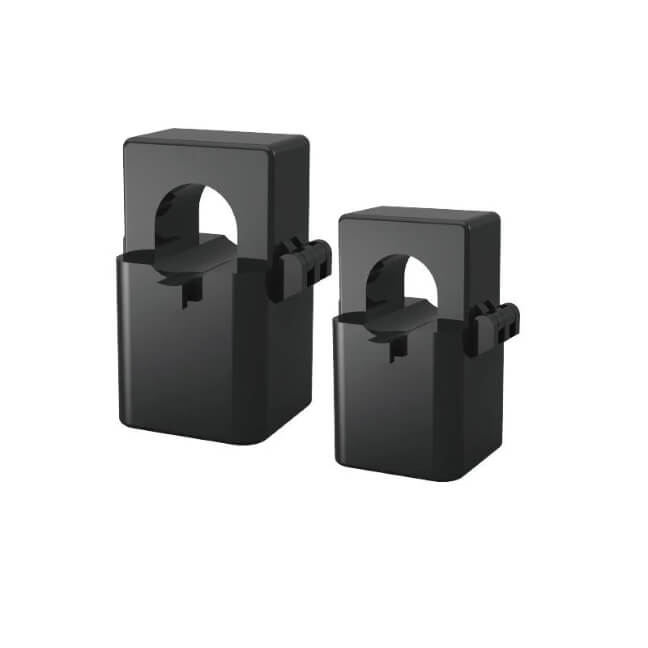

50-600A Split Core 0.2s Power Sensor CT Current Transformer

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Elecnova
Rated Voltage: AC660V
application: Current Transformer
Material: Steel
name: SHI-SCT
Model Number: SHI-SCT

Specifications

Basic Info.

Model NO.

SHI-SCT

Frequency

45-65Hz

Operating Temperature

-10C~+55C

Primary Voltage

50~600A

Output

333mv

Application

Current Transformer

Power-Frequency Withstand Voltage

3000V/1min 50Hz

Specification

17*17*16cm

Trademark

ELECNOVA

Origin

China

HS Code

9030809090

Production Capacity

20000PCS/Per Month

Product Description

Product NamE: 50-600A Split core 0.2S LV CT current transformer power sensor

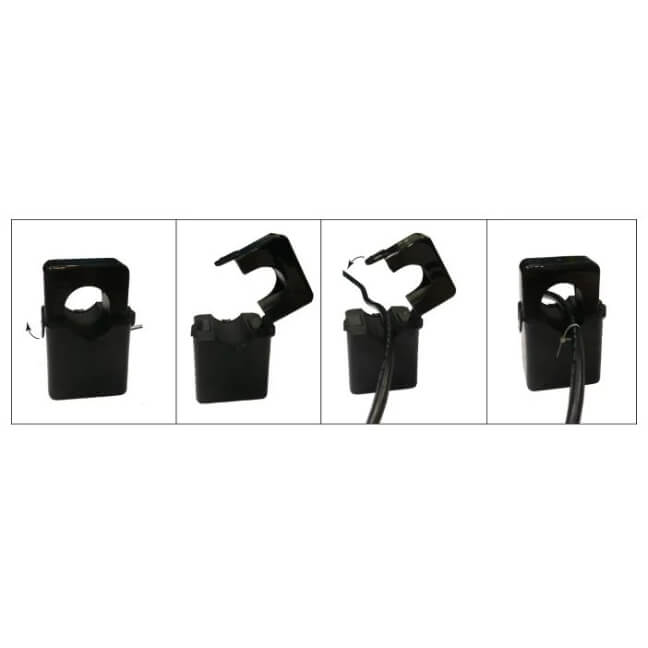

SHI-SCT series open-close transformers are designed with a split type and considerate design, with low loss and high precision (primary current below 600A). It can be installed when the line is uninterrupted, and can be used with the electric energy meter series to achieve accurate measurement.
50600A Split Core 02s Power Sensor CT Current Transformer

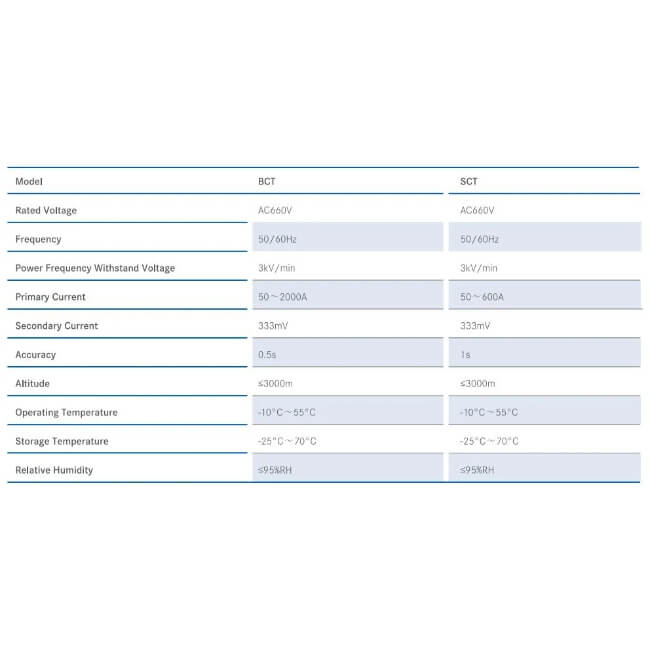

Technical Specifications

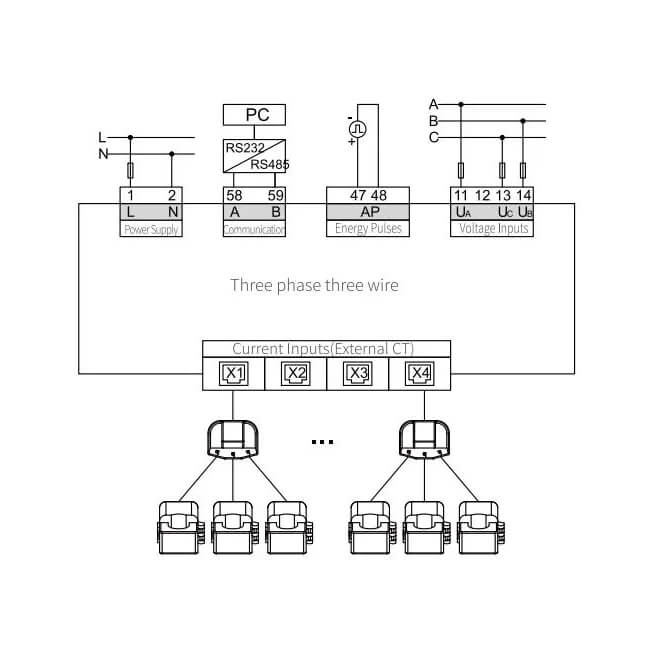

Typical Wiring

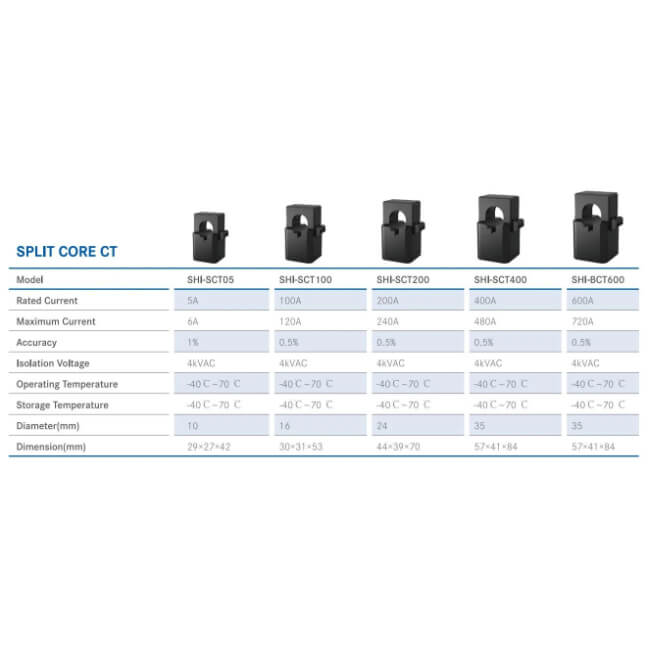

Model Selection
